Product details

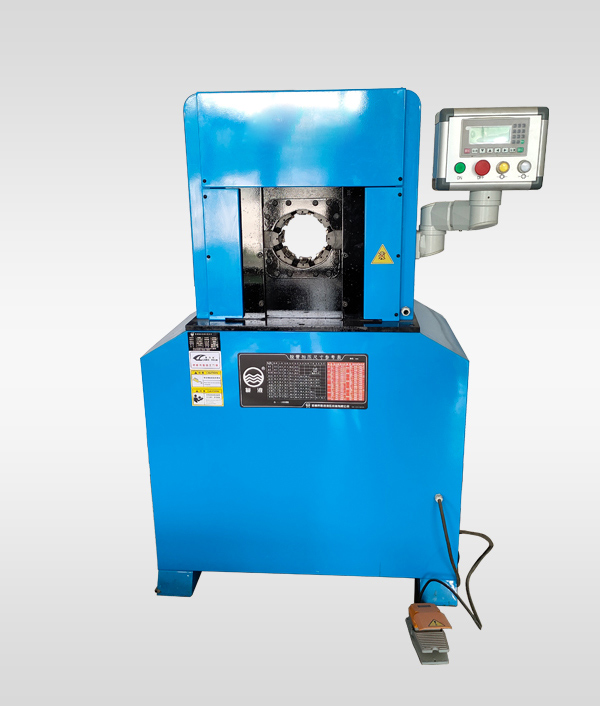

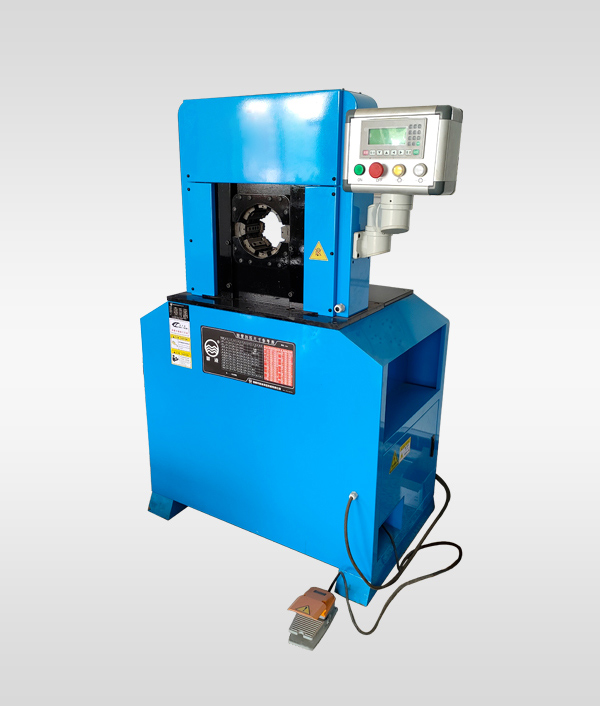

Product model:FXSG-904A
Product features:The control system adopts PLC+display mode, and the displacement sensor can collect signals with an accuracy of 0.001 millimeters,
Technical Parameter
|
Crimping range (mm/inch) |
6mm-51mm |
|
hose ID (mm/inch) |
51mm |
|
Cylinder thrust |
340T |
|
Full crimping circle (seconds) |
close: 48mm/s Crimping:2.2mm/s |
|
open:69mm/s |
|
|
Opening and closing |
±70mm |
|
opening (no dies) |
164mm |
|
Accuracy |
≤0.1mm |
|
Motor |
4kw |
|
Voltage |
380V/50HZ |
|
Systematic pressure |
31.5MPa |
|
Displacement of oil pump |
14.4L/min |
|
Fuel tank capacity |
165L |
|
Dies for the machine ( hange ) |
10sets |
|
Weight |
800kg |
|
Volume |
1000x680x1590mm |
